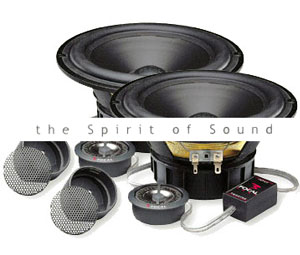

2-way separate system
Woofer 6 H1
165mm (6-1/2) midbass,
25mm (1) v.coil, 85mm (3-3/8) magnet
Midrange -
Tweeter TN 45
Crossover FA H1
Separate high-pass crossover
12 dB/oct. (4 kHz)
Max. power handling 140 W
Nom. power handling 70 W
Sensitivity (2.8 V / 1m) 92,5 dB
Frequency response 60 Hz -20 kHz
Fs 68,0 Hz
Re 3,0 ohms
Qes 0,84
Qms 8,73
Qts 0,77
Dia 13 cm
Mms 12,1 g
Lvc 0,38 mH
Hbob 14,5 mm
Hgap 5 mm
Xmax 4,75 mm
Sd 132,7 cm2
Vas 11,2 l
BL 4,3 N/A
Folding diameter 142 mm
Mounting depth 69 mm
|
